| ： | 54-00063 |
|---|---|
| ： | Power Connectors |
| ： | Tensility International Corporation |

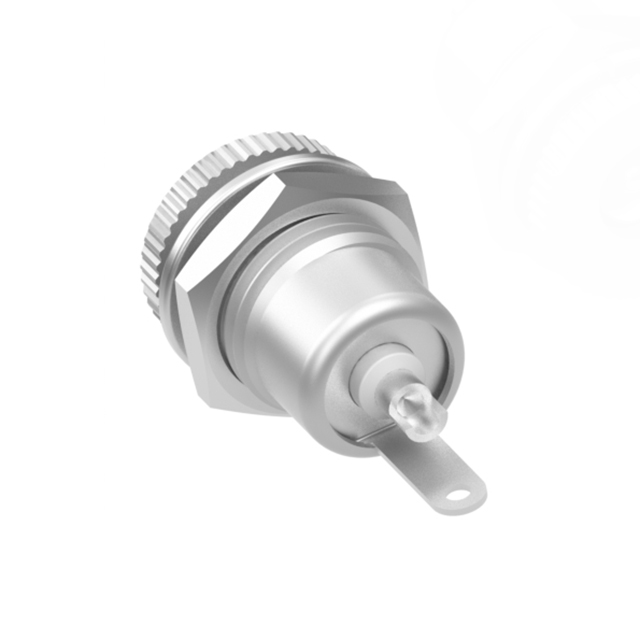

| ： | CONN PWR JACK 2 |
| ： | - |
| ： | Bulk |
| ： | 8628 |
| ： | 1 |
1
$2.8300
$2.8300
10
$2.5700
$25.7000
25
$2.4300
$60.7500
50
$2.3800
$119.0000
100
$2.2600
$226.0000
250
$1.9800
$495.0000
500
$1.9200
$960.0000
1000
$1.6400
$1,640.0000
2500
$1.5300
$3,825.0000
| TYPE | DESCRIPTION |
| Mfr | Tensility International Corporation |
| Series | - |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Mounting Hardware |
| Voltage - Rated | 48VDC |
| Connector Type | Jack |
| Gender | Male |
| Mounting Type | Panel Mount |
| Thread Size | M11x1 |
| Operating Temperature | -10°C ~ 60°C |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Termination | Solder |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Contact Material | Copper Alloy |
| Body Color | Silver |
| Contact Material - Plating | Nickel |
| Actual Diameter | 0.079" (2.00mm ID), 0.224" (5.70mm OD) |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Current Rating (Amps) | 6.5 A |
