| ： | FGG.3B.322.CLAD10 |
|---|---|
| ： | Circular Connector Assemblies |
| ： | REDEL / LEMO |

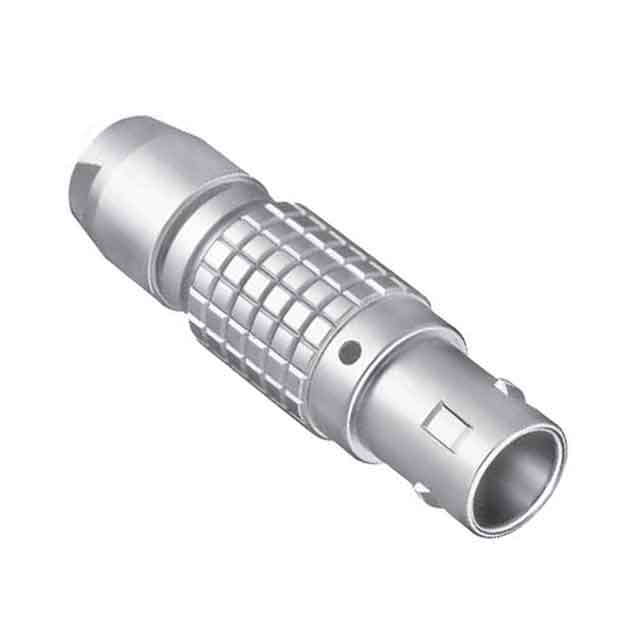

| ： | CONN PLUG MALE |
| ： | - |
| ： | Bulk |
| ： | 68 |
| ： | 1 |
1
$128.2300
$128.2300
10
$117.6700
$1,176.7000
25
$113.1400
$2,828.5000
50
$109.3700
$5,468.5000
| TYPE | DESCRIPTION |
| Mfr | REDEL / LEMO |
| Series | 3B |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Backshell |
| Connector Type | Plug, Male Pins |
| Color | Silver |
| Current Rating (Amps) | 5.5A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 22 |
| Orientation | G |
| Shell Size - Insert | 322 |
| Operating Temperature | -55°C ~ 250°C |
| Fastening Type | Push-Pull |
| Termination | Solder Cup |
| Ingress Protection | IP50 - Dust Protected |
| Cable Opening | 0.362" ~ 0.394" (9.20mm ~ 10.00mm) |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Shell Material | Brass |
| Shell Finish | Chrome |
| Insert Material | Polyetheretherketone (PEEK) |
| Backshell Material, Plating | Brass, Chrome |
| Primary Material | Metal |
